Ponto de acesso interno R850 RUCKUS

Ultra High-Performance Wi-Fi 6 8x8:8 Indoor Access Point with 5,9 Gbps max rate and Embedded IoT

RUCKUS R850 Indoor Access Point Features

The R850 is based on the latest Wi-Fi standard, Wi-Fi 6 and bridges the performance gap from ‘gigabit’ Wi-Fi to ‘multi-gigabit’ Wi-Fi in support of the insatiable demand for better and faster Wi-Fi.The R850 makes it easy to deliver reliable, secure, ultra-high-performance connectivity to large enterprises, public venues, convention centers, and other challenging environments.

The R850 is our highest capacity dual-band, dual-concurrent Wi-Fi 6 (802.11ax) access point (AP) that supports 12 spatial streams (8x8:8 in 5GHz, 4x4:4 in 2.4GHz). The R850, with OFDMA and MU-MIMO capabilities, efficiently manages up to 1.024 client connections with increased capacity, improved coverage and performance in ultra-high dense environments.
  • Connect More Devices Simultaneously - Improve device performance, by enabling more simultaneous device connections with built-in 8 spatial streams (dual-concurrent, 8x8:8 in 5GHz, 4x4:4 in 2.4GHz), MU-MIMO and OFDMA technology while enhancing non-Wi-Fi 6 client performance. Support for up to 1.024 clients
  • Ultra-High-Density Performance - Provides exceptional end-user experience within stadiums, large public venues, convention centers and school auditoriums with the RUCKUS Ultra-High-Density Technology Suite
  • Enhanced Security - Reinforce security with WPA3, the latest Wi-Fi security standard and receive enhanced protection from man-in-the-middle attacks
  • Multi-Gigabit Access Speeds - Optimized multi-gigabit Wi-Fi performance delivered using built-in 5GbE/2.5GbE Ethernet ports to connect to multi-gigabit switches
  • Device Management Options - Manage the R850 with on-premises physical/virtual appliances or the cloud
  • Better Mesh Networking - Minimize complexity by reducing expensive cabling with SmartMesh that dynamically creates self-forming, self-healing mesh networks
  • Automate Optimal Throughput - ChannelFly dynamic channel technology uses machine learning to automatically find the least congested channels. You always get the highest throughput the band can support
  • More than Wi-Fi - Support services beyond Wi-Fi with RUCKUS IoT Suite, Cloudpath security and onboarding software, SPoT Wi-Fi locationing engine, and RUCKUS analytics

Specifications for RUCKUS R850 Indoor Access Point

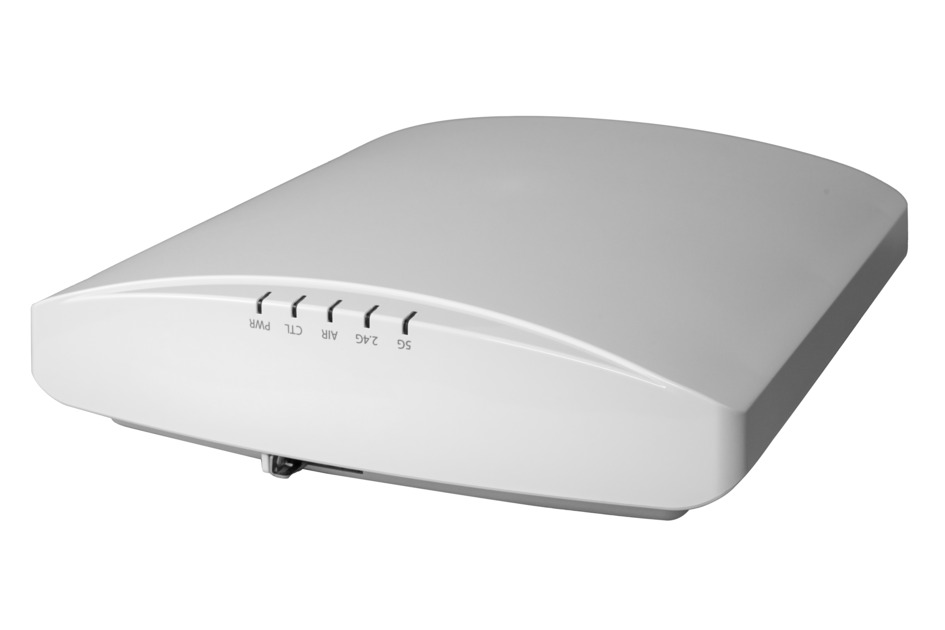

R850 | RUCKUS R850 Indoor Access Point [RUCKUS R850 Access Point - Front View]
Disponibilidade regional Ásia | Austrália/Nova Zelândia | EMEA | América Latina | América do Norte
Tipo de produto Ponto de acesso interno
Marca do produto RUCKUS®
Antenna Patterns, per band 4000+
Antenna Gain Up to 2 dBi
BeamFlex Sim
ChannelFly Sim
Usuários concorrentes 1024
Controller Support RUCKUS Cloud™ | RUCKUS SmartZone | RUCKUS ZoneDirector | Standalone
Portas Ethernet 1 x 1 / 2,5 / 5 GbE | 1 x 1 GbE
Suporte IoT Integração IoT
Número de rádios Rádio duplo
PD-MRC Sim
PHY Rate at 2,4 GHz, maximum 1148 Mb/s
PHY Rate at 5 GHz, maximum 4800 Mb/s
Combined Max PHY Rate 5948 Mb/s
Correntes e fluxos de rádio 8x8:8 SU-MIMO e MU-MIMO
Rx Sensitivity at 2,4 GHz -91 dBm
Rx Sensitivity at 5 GHz -91 dBm
SmartMesh Sim
USB USB 2,0
Tipo de local Hotelaria | Local público | Transportes
Subtipo do local Piso da Convenção | Auditório | Estações de trânsito | Locais comuns
Bandas Wi-Fi suportadas 2,4 GHz | 5 GHz
Geração de Wi-Fi Wi-Fi 6
Padrão Interfaz de Wi-Fi IEEE 802.11a/b/g/n/ac/ax
Temperatura operacional 0 °C to +50 °C (+32 °F to +122 °F)
