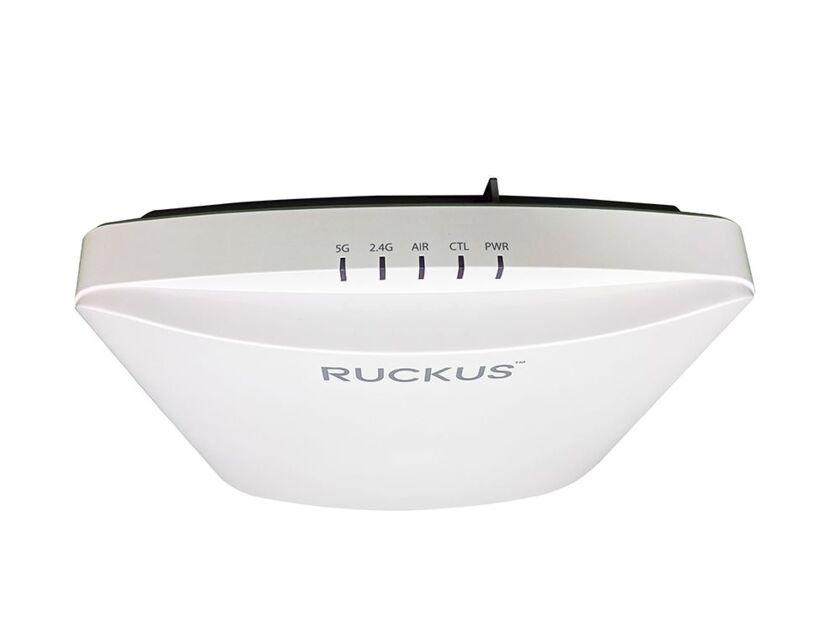

RUCKUS R750 Indoor Access Point Features
The R750 is based on the latest Wi-Fi 6 standard and bridges the performance gap from ‘gigabit’ Wi-Fi to ‘multi-gigabit’ Wi-Fi in support of the insatiable demand for better and faster Wi-Fi. The R750 is the first ever Wi-Fi 6 AP to be granted Wi-Fi CERTIFIED 6 status by the Wi-Fi Alliance. As part of Wi-Fi Alliance's testbed, the R750 validates other devices for Wi-Fi CERTIFIED 6 interoperability certification.
The R750 makes it easy to deliver reliable, secure, high-performance connectivity in transit hubs, auditoriums, conference centers and other high traffic indoor spaces.
The RUCKUS R750 is our high-end dual-band, dual-concurrent Wi-Fi 6 AP that supports 8 spatial streams (4x4:4 in 5GHz, 4x4:4 in 2.4GHz). The R750, with OFDMA and MU-MIMO capabilities, efficiently manages up to 1024 client connections with increased capacity, improved coverage and performance in ultra-high dense environments.
Also, wireless requirements within enterprises are expanding beyond Wi-Fi with Bluetooth® Low Energy, Zigbee and many other non-Wi-Fi wireless technologies. Enterprises need a unified platform to eliminate network silos. The RUCKUS AP portfolio is equipped to solve these challenges through wireless convergence.
The R750 is also easy to manage through RUCKUS physical and virtual cloud management options.
The R750 makes it easy to deliver reliable, secure, high-performance connectivity in transit hubs, auditoriums, conference centers and other high traffic indoor spaces.
The RUCKUS R750 is our high-end dual-band, dual-concurrent Wi-Fi 6 AP that supports 8 spatial streams (4x4:4 in 5GHz, 4x4:4 in 2.4GHz). The R750, with OFDMA and MU-MIMO capabilities, efficiently manages up to 1024 client connections with increased capacity, improved coverage and performance in ultra-high dense environments.
Also, wireless requirements within enterprises are expanding beyond Wi-Fi with Bluetooth® Low Energy, Zigbee and many other non-Wi-Fi wireless technologies. Enterprises need a unified platform to eliminate network silos. The RUCKUS AP portfolio is equipped to solve these challenges through wireless convergence.
The R750 is also easy to manage through RUCKUS physical and virtual cloud management options.
Specifications for RUCKUS R750 Indoor Access Point
Classificação do produto
Disponibilidade regional | Ásia | Austrália/Nova Zelândia | EMEA | América Latina | América do Norte |
Tipo de produto | Ponto de acesso interno |
Marca do produto | RUCKUS® |
Especificações gerais
Antenna Patterns, per band | 4000+ |
Antenna Gain | Up to 3 dBi |
BeamFlex | Sim |
ChannelFly | Sim |
Usuários concorrentes | 1024 |
Controller Support | RUCKUS SmartZone | RUCKUS Unleashed™ | RUCKUS ZoneDirector | Standalone |
Portas Ethernet | 1 x 1 GbE | 1 x 2,5 GigE |
Suporte IoT | Integração IoT |
Número de rádios | Rádio duplo |
PD-MRC | Sim |
PHY Rate at 2,4 GHz, maximum | 1148 Mb/s |
PHY Rate at 5 GHz, maximum | 2400 Mb/s |
Combined Max PHY Rate | 3548 Mb/s |
Correntes e fluxos de rádio | 4x4:4 |
Rx Sensitivity at 2,4 GHz | -102 dBm |
Rx Sensitivity at 5 GHz | -102 dBm |
SmartMesh | Sim |
USB | USB 2,0 |
Tipo de local | Educação | Hotelaria | Escritório/varejo | Local público |
Subtipo do local | Cafeteria/Sala polivalente | Biblioteca | Saguão/espaços comuns | Salas de reuniões | Salas VIP |
Bandas Wi-Fi suportadas | 2,4 GHz | 5 GHz |
Geração de Wi-Fi | Wi-Fi 6 |
Padrão Interfaz de Wi-Fi | IEEE 802.11a/b/g/n/ac/ax |
Especificações ambientais
Temperatura operacional | 0 °C to +50 °C (+32 °F to +122 °F) |
