RUCKUS H550 Indoor Access Point Features
In hotels, apartment buildings, and other multi-dwelling structures, wireless connectivity can carry a hefty price tag. You need to connect a wide range of wired devices - IPTV set-top boxes, IP phones, networked minibars - IoT devices like smart locks and sensors - while delivering a great wireless experience for guests.
The RUCKUS H550 wall-mounted access point, IoT gateway and Ethernet switch makes it easy to support the most demanding in-room connectivity requirements. It starts with RUCKUS patented Wi-Fi optimization intelligence to deliver the industry's highest-performing wireless connectivity. Combine that with four-ports of Gigabit Ethernet to connect multiple in-room wired devices, without extra cabling and add supports for Zigbee® and Bluetooth® Low Energy, as well as other protocols via optional USB modules. Put it all in a sleek low-profile design that can be discretely installed over a standard electrical outlet.
Deliver the full range of in-room services while dramatically reducing cabling, installation time, and construction costs.
The RUCKUS H550 wall-mounted access point, IoT gateway and Ethernet switch makes it easy to support the most demanding in-room connectivity requirements. It starts with RUCKUS patented Wi-Fi optimization intelligence to deliver the industry's highest-performing wireless connectivity. Combine that with four-ports of Gigabit Ethernet to connect multiple in-room wired devices, without extra cabling and add supports for Zigbee® and Bluetooth® Low Energy, as well as other protocols via optional USB modules. Put it all in a sleek low-profile design that can be discretely installed over a standard electrical outlet.
Deliver the full range of in-room services while dramatically reducing cabling, installation time, and construction costs.
Specifications for RUCKUS H550 Indoor Access Point

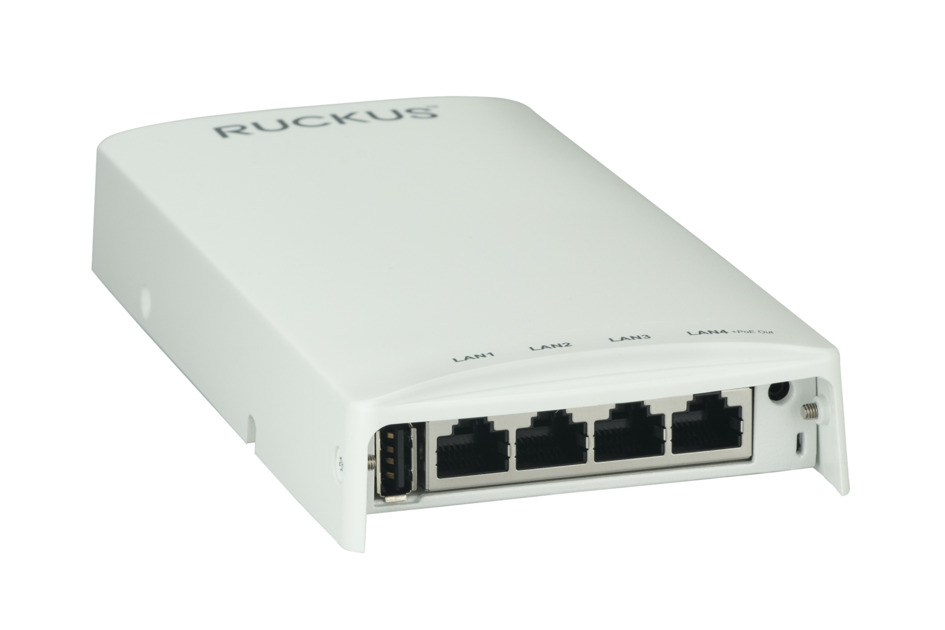

![H550 | RUCKUS H550 Indoor Access Point [H550_UpRight]](https://www.ruckusnetworks.com/globalassets/digizuite/966223-h550-upright.png/medium?mediaformatid=50103)
Classificação do produto
Disponibilidade regional | Ásia | Austrália/Nova Zelândia | EMEA | América Latina | América do Norte |
Tipo de produto | Ponto de acesso interno |
Marca do produto | RUCKUS® |
Especificações gerais
Antenna Patterns, per band | 16 |
Antenna Gain | Up to 1 dBi |
BeamFlex | Sim |
ChannelFly | Sim |
Usuários concorrentes | 512 |
Controller Support | RUCKUS Cloud™ | RUCKUS SmartZone | RUCKUS Unleashed™ | RUCKUS ZoneDirector |
Portas Ethernet | 5 x 1 GbE |
Suporte IoT | IoT Onboard (dual-concurrent) |
Número de rádios | Rádio duplo |
PD-MRC | Sim |
PHY Rate at 2,4 GHz, maximum | 574 Mb/s |
PHY Rate at 5 GHz, maximum | 1200 Mb/s |
Combined Max PHY Rate | 1774 Mb/s |
Correntes e fluxos de rádio | 2x2:2 |
Rx Sensitivity at 2,4 GHz | -100 dBm |
Rx Sensitivity at 5 GHz | -100 dBm |
SmartMesh | Sim |
USB | USB 2,0 |
Tipo de local | Educação | Hotelaria |
Subtipo do local | Quartos de hóspedes | Residências |
Bandas Wi-Fi suportadas | 2,4 GHz | 5 GHz |
Geração de Wi-Fi | Wi-Fi 6 |
Padrão Interfaz de Wi-Fi | IEEE 802.11a/b/g/n/ac/ax |
Especificações ambientais
Temperatura operacional | 0 °C to +40 °C (+32 °F to +104 °F) |
